The room connectivity indicator shows whether the Theator units in an operating room are online and ready to record. On the room page it appears above the video as a single row of status dots. Click the row to open a side panel with a card for each unit in the room.
The Status Row
Hover over any dot to see what it means.
| You see | What it means |
|---|---|
| Connected | The room's unit is online. In a room with more than one unit, this reads 1/2 online, 2/2 online, and so on. |
| Disconnected | No unit in the room is online. Last online: shows when a unit in the room was last connected. |
| No units | No Theator unit is mapped to this room. |
| Network | How far the live video lags behind real time: Network healthy (60 seconds or less), Network degraded (60 to 120 seconds) or Network poor (more than 120 seconds). Shown only while a unit is online. |
| Pedal | Shown only when a foot pedal is in use: Foot pedal connected, or Foot pedal expected but not connected. |
| Microphone | Shown when the unit reports a microphone: Microphone connected or Microphone not connected. |
| Disk | How full the unit's disk is: Disk healthy (75% or less), Disk filling up (75 to 90%) or Disk nearly full (more than 90%). |
| Queue | Recordings waiting to upload: Upload queue healthy (1 to 3 items), Upload queue backed up (4 to 10) or Upload queue heavily backed up (more than 10). Hidden when nothing is waiting. |
| 1 incident | Open equipment incidents in the room. Hover to see each one, and click to open its details. |
Unit Cards
Click the status row to open the side panel. It has one card per unit:
- The unit name, followed by (Stationary) or (Roaming).

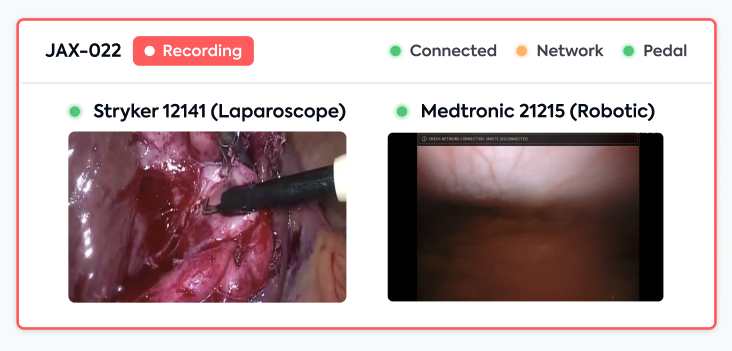

- Recording, pulsing, while the unit is recording. When it isn't recording, the card reads Auto recording in a room that records automatically, or Ready to record when the unit is ready.
- Network, Pedal and Microphone dots while the unit is online, and any open incidents for that unit.
If a unit is offline, its card shows Disconnected with Last online:, and the video area reads Device offline.

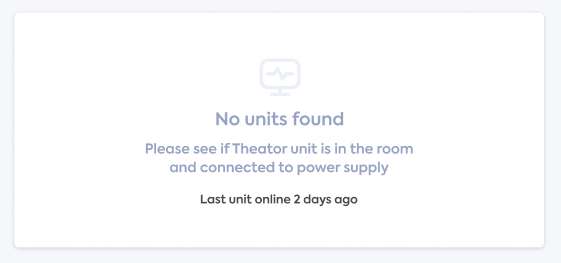

If no unit is mapped to the room, the panel reads No units in room: Please check if the Theator unit is in the room and is connected to power supply.
Video Inputs
Each unit card lists the video inputs connected to that unit, by connection type (for example HDMI or DVI) or by a custom name your team set up.
- Signal arriving: a green dot and a preview of the input. If no preview is available, the card reads Signal On.

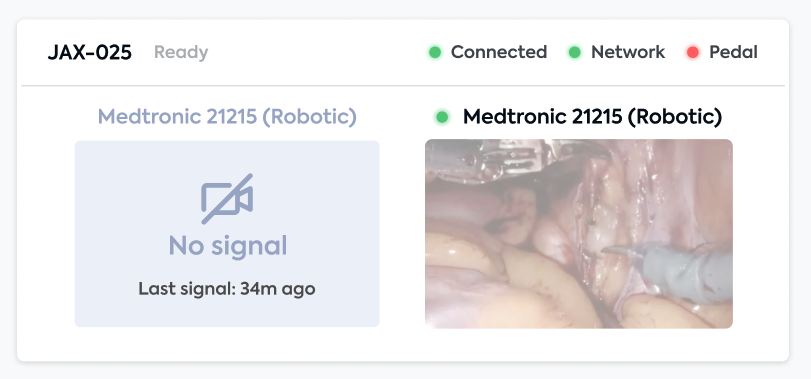

- No signal: a red dot, No signal, and Last active: with how long ago a signal was last seen.
- Recording label: the input being recorded right now.
- Unexpected: a signal is arriving on an input that isn't set up to be used.
- Robotic: the input is set up as a robotic video source.
- No inputs configured: the unit has no video inputs set up.
Check That a Case Is Recording
- On the room page, click the status row.
- Find the unit's card and look for the pulsing Recording next to its name.
- Check that the input you expect carries the Recording label.
If you see Disconnected, Device offline or No signal during a case, the recording may not be capturing. Flag it to your team while the case is still running.
What's Next?
- How can I know that a case is recorded during surgery? — Confirm recording is active while you operate
- Intro to Room Page — Live view, scheduling, and snapshots
- Pedal / Clicker Disconnected — Troubleshooting Guide — What to do when the Pedal dot is red
- No Video Signal / No Unit Present — Troubleshooting Guide — Hands-on checks for a dark input or a missing unit
